Thapo eo u e khethang bakeng sa sistimi ea motlakase ea koloi ea hau e ka ba le tšusumetso e kholo ho polokeho, ts'epo le bophelo ba koloi. Mohala oa FL2G ke thapo e sebelisoang haholo bakeng sa peterole le likoloi tse ling tsa matla. E etselitsoe ka ho khetheha lithapo tsa betri tsa likoloi 'me e fana ka nako e telele le ho tenyetseha ha mocheso o phahameng. Sehloohong sena re tla hlalosa litlhaloso tsa tekheniki, melemo, lits'ebetso tse sebetsang, le lintlha tsa bohlokoa ha u khetha thapo ea FL2G, ho thusa baenjiniere le bareki ho fumana kutloisiso e ntle ea karolo ena ea bohlokoa.
Selelekela sa Motheo le Sebopeho sa FL2G Cable

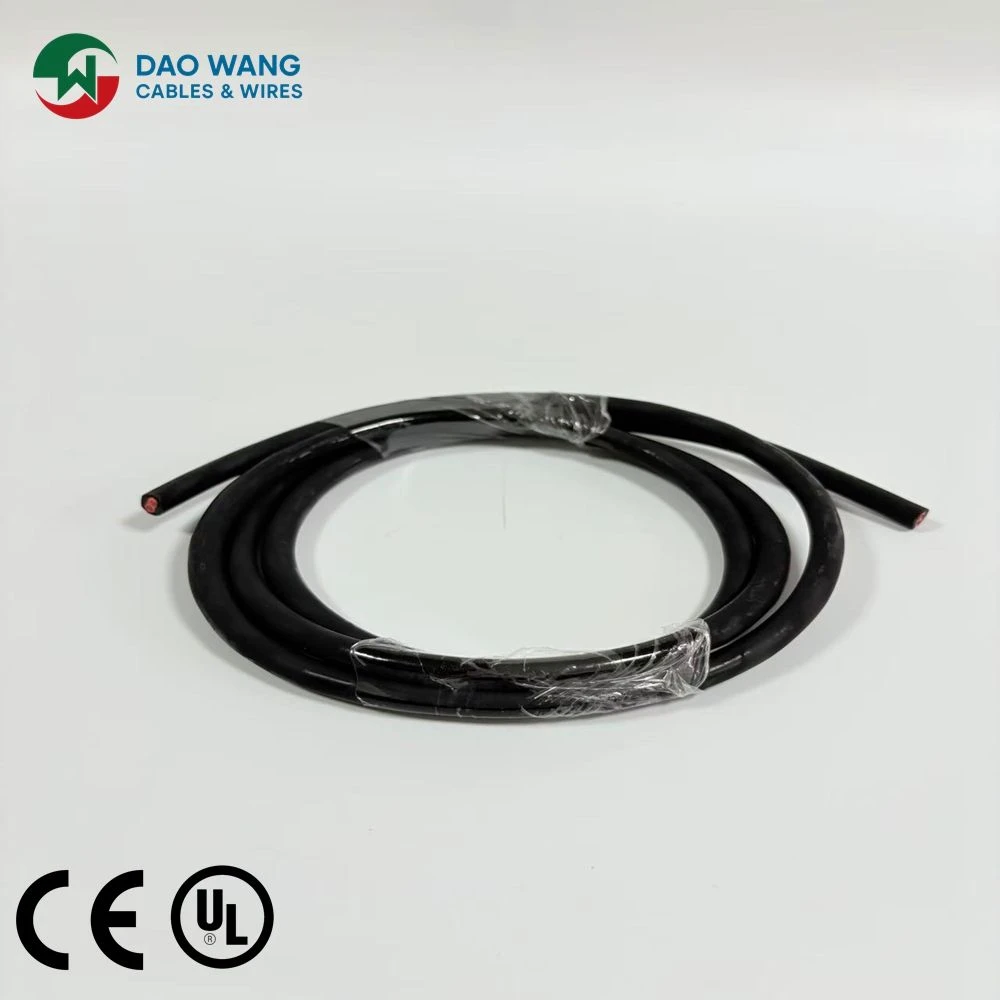

FL2G cable ke thapo ea likoloi e tloaelehileng ea Jeremane (GSB) e sebelisoang haholo bakeng sa lithapo tse etellang pele tsa betri. E na le-moetso o le mong o sa sireletsehang o nang le-sekontiri sa koporo e hloekileng le sekontiri sa silicone sa rabara, se e fang mocheso o matla haholo.
Likarolo tsa Bohlokoa tsa Sebopeho:
-
Kondaktara: Koporo e se nang letho kapa{0}tine e pentiloeng. Kondaktara e sebelisa-mohaho oa likhoele tse ngatanyana (mohlala, 16/0.21, 50/0.26, joalo-joalo) ho netefatsa ho tenyetseha le ho sebetsa hantle.
-
Insulation: Thepa ea rabara ea silicone, e fana ka khanyetso e ntle ho mocheso o phahameng, oli, mafura, acid, alkalis le brake fluid.
-
Tumellano ea Maemo: ISO 6722 Sehlopha sa F (e 'ngoe ea lihlopha tse phahameng ka ho fetisisa tsa mocheso), tse ling li boetse li lumellana le litekanyetso tsa indasteri ea likoloi tse kang LV 112 le ISO 19642.
Ha ho bapisoa le lithapo tse ling tse tloaelehileng tsa likhoele tsa likoloi (joalo ka letoto la FLRY le insulation ea PVC), monyetla o moholo oaFL2G Cableke matla a eona a phahameng a-mocheso, 'me e na le-mocheso oa nako e telele oa ho sebetsa oa +200℃le ho feta ka nako e khutšoane. Sena se etsa hore e lokele{4}}libaka tsa mocheso o phahameng joalo ka liphaposi tsa enjene.
Litlhaloso tsa tekheniki le likarolo tsa ts'ebetso ea cable ea FL2G
Lithapo tsa FL2G li etselitsoe mocheso o fapaneng oa -40 degrees ho ea ho +200℃, tse fanang ka ho tenyetseha hamonate le ha mocheso o tlase o khona ho mamella botsofali, ho peperana le ho senyeha ha ts'ebetso ha mocheso o le holimo. Lithapo li boetse li thibela mollo, li na le motlakase o motle le matla a mochine.
E latelang ke tafole e tloaelehileng ea litlhaloso:
| Karolo NO. | Mokhanni | Insulation |
Max. Ho hanyetsa ka likhato tse 20 |
Matla a dielectric (VAC,30min) |
|||
| mm2 | NO./mm | Dia. mm |
Min.Botenya. mm |
Max Dia. mm |
|||
| FL2G | 0.35 | 12/0.20 | 0.8 | 0.48 | 2 | 54.4 | 2000 |
| 0.5 | 16/0.20 | 0.92 | 0.48 | 2.3 | 37.1 | 5000 | |
| 0.75 | 24/0.20 | 1.14 | 0.48 | 2.5 | 24.7 | 5000 | |
| 1 | 32/0.20 | 1.31 | 0.48 | 2.7 | 18.5 | 5000 | |
| 1.5 | 30/0.25 | 1.58 | 0.48 | 3 | 12.7 | 5000 | |
| 2 | 30/0.30 | 1.83 | 0.48 | 3.3 | 9.42 | 5000 | |
| 2.5 | 50/0.25 | 2.04 | 0.56 | 3.6 | 7.6 | 5000 | |
| 3 | 45/0.30 | 2.3 | 0.56 | 4.1 | 6.15 | 5000 | |
| 4 | 56/0.30 | 2.6 | 0.64 | 4.4 | 4.71 | 5000 | |
| 5 | 78/0.30 | 2.9 | 0.64 | 4.9 | 3.94 | 5000 | |
| 6 | 84/0.30 | 3.18 | 0.64 | 5.0 | 3.14 | 5000 | |
| 10 | 80/0.40 | 4.23 | 0.8 | 6.5 | 1.82 | 5000 | |
| 16 | 126/0.40 | 5.61 | 0.8 | 8.3 | 1.16 | 5000 | |
| 25 | 194/0.40 | 7.0 | 1.04 | 10.4 | 0.743 | 5000 | |
| 35 | 276/0.40 | 8.09 | 1.04 | 11.6 | 0.527 | 5000 | |
| 50 | 396/0.40 | 9.7 | 1.2 | 13.5 | 0.368 | 5000 | |
| 70 | 557/0.40 | 11.4 | 1.2 | 15.5 | 0.259 | 5000 | |
| 95 | 757/0.40 | 13.26 | 1.28 | 18.0 | 0.196 | 5000 | |
| 120 | 969/0.40 | 15.0 | 1.28 | 19.7 | 0.153 | 5000 | |
Melemo ea mantlha ea likhoele tsa FL2G
1. Ho Phahameng ka ho Fetisisa-Tšebetso ea Mocheso: Litikolohong tsa komporo ea enjene moo mocheso o ka fihlang ho 150-200 degrees , lithapo tse tloaelehileng tsa PVC li nolofala kapa tsa bola ha bonolo, haFL2G Cablee ka sebetsa hantle bakeng sa lihora tse fetang 3000 (litlhaloso tse ling), e fokotsa haholo kotsi ea ho hloleha.
2. Botsitso bo Matla ba Lik'hemik'hale: Ho hanyetsa oli, mafura, brake fluid, le mecha ea litaba ea organic, e loketseng maemo a thata a ho sebetsa a likoloi.
3. High Flexibility: E boloka ts'ebetso e ntle ea ho khumama esita le -40℃, ho nolofalletsa ho kenya le ho kenya mohala.
4. E Sireletsehile ebile e Setsoalle Tikolohong: E lumellana le RoHS, REACH, le litekanyetso tse ling; litaba tse tlase tsa halogen le thepa e ntle e thibelang malakabe.
5. Nako e Telele: Tsebo e ntle haholo ea ho thibela{1}botsofali, e fokotsang litšenyehelo tsa tlhokomelo.
Ha ho bapisoa le lithapo tse tšesaane-tse kangLetoto la lihlooho tse FLR), FL2G ke moetso o motenya-o nang le mabota, o etsang hore e tšoanelehe bakeng sa maemo a holimo{{2}ea hona joale,{3}}ea holimo, a holimo{3}}ea betirii e etellang pele.
FL2G Maemo a Sebetsang a Kopo
Taba ea 1: Ho Ntlafatsa Sisteme ea Battery ea Sepalangoang sa Setso sa Peterole
Moetsi oa likoloi oa Europe o sebelisitse lithapo tsa FL2G 16mm² le 25mm² bakeng sa lisebelisoa tse ntle le tse mpe tsa betri ka phaposing ea enjine. Lithapo tsa mantlha tsa PVC li tsofala le ho lutla ka mor'a lilemo tse peli li sebelisoa sebakeng se phahameng-mocheso. Sekhahla sa ho feta ha koloi bakeng sa tlhahlobo ea mocheso o phahameng (+180 likhato tse sa khaotseng tsa baesekele) se eketsehile ka 95% ka mor'a ho nkeloa sebaka ke mehala ea FL2G. Botšepehi ba khokahano ea betri le sekhahla se amanang le ho hloleha nakong ea tiisetso e ntlafalitsoe haholo ka 70%. Sena se fokotsa ka kotloloho likotsi le ka mor'a{12}litšenyehelo tsa ho khutlisa chelete.
Case 2: Thuso ea Wiring bakeng sa Liphutheloana tsa Battery tse Phahameng-Motlakase ho Likoloi tse Ncha tsa Matla
Tabeng ea makoloi a macha, lithapo tsa mantlha tse phahameng-li fapane, empa FL2G e sebelisoa hangata bakeng sa -motlakase oa motlakase o tlase, lisebelisoa tsa motlakase oa sensor kapa lithapo tsa BMS. Moetsi oa koloi e ncha ea matla oa China o sebelisitse FL2G 6mm² le lithapo tse 10mm² sebakeng se phahameng{7} se nang le mocheso o phahameng oa mocheso. enjene, 'me ba tlameha ho feta litekong tsa ho palama libaesekele tse feteletseng (-40 degrees ~{10}}℃) le liteko tsa ho senya ha letsoai, ho netefatsa hore koloi e sebetsa ka mokhoa o tsitsitseng libakeng tse batang le tse phahameng.
Thuto-pale ea 3: Likoloi tse boima tsa Khoebo le Mechini ea Kaho
Likoloi tse kholo tse kang literaka le li-excavators li hloka lisebelisoa tsa betri tse khonang ho sebetsana le maqhubu a phahameng le ho sisinyeha ho matla. Khampani ea metjhini ea kaho e sebelisitse FL2G 35-70mm² lithapo tsa karolo e kholo ho hokela lienjene tse qalang le lijenereithara. Ho feto-fetoha ha maemo le ho hanyetsa ha abrasion ea rabara ea silicone ho ipakile ho sebetsa ho thibela ho robeha ha cable kapa ho senyeha ha insulation ka ho thothomela ha nako e telele, e leng se ileng sa eketsa bophelo bohle ba ts'ebeletso ea lisebelisoa le linako tsa tlhokomelo ho tloha likhoeling tse 6 ho isa ho likhoeli tse 18.
Linyeoe tsena li bontša seoFL2Gha e lokele likoloi tsa baeti feela empa e sebelisoa haholo likoloing tsa khoebo, likoloing tsa mabelo, le likoloing tse khethehileng-.
Litlhokomelo tsa ho khetha le ho kenya
Ha u khetha conductor, hopola lintlha tse latelang:
1. Sebaka sa cross section. Ho ea ka thepa ea hona joale (sheba litlhaloso tsa moralo oa motlakase oa likoloi).
2. Khoutu ea mebala: Bofubelu (bo ntle) le botšo (bo mpe) bo atile haholo, empa mebala e meng e ka etsoa.
3. Tin plating vs. bare copper: Tin plating-likhondara tse entsoeng ka lesela li sebetsa hantle ho thibela ho bola, 'me li loketse ho sebelisoa libakeng tse mongobo kapa tsa letsoai.
4. Setifikeiti sa Bafani: Khetha bahlahisi ba netefalitsoeng ke litsamaiso tsa boleng ba likoloi, joalo ka IATF 16949, ho etsa bonnete ba ho ts'oara maemo ho pholletsa le lihlopha.
Nakong ea ho kenya, beha leihlo sebakeng se fokolang sa ho kobeha, qoba ntlha e nchocho ho hloa lera la ho kenya letsoho 'me u sebelise clamp e loketseng ho qoba ho thothomela le ho roala. Likoloing tse ncha tsa motlakase, hape u hloka ho qoba{1}lithapo tsa motlakase tse phahameng.
Kakaretso
Ka lebaka la ho potlaka ha motlakase oa likoloi, tlhoko ea-ea lithapo tse tšoarellang e ntse e eketseha letsatsi le letsatsi. FL2G, e le tharollo ea boemo bo phahameng ba mocheso-e phahameng, e ntse e ka ba le monyetla o moholo lits'ebetsong tsa lipalangoang tse nyalisitsoeng le tse hloekileng tsa motlakase. Nakong e tlang, likhoele tse ts'oanang li tla fetoha ho ea pele ka ho kenyelletsa moralo o bobebe (joalo ka mofuta oa aluminium conductor FLAL2G) le theknoloji e bohlale ea ho beha leihlo.
FL2G cables, ka ts'ebetso ea tsona e tšepahalang-ea mocheso o phahameng le ts'ireletso e felletseng, e fetohile khetho e ratoang bakeng sa litebelisoa tsa libeteri tsa likoloi. Ebang ke bakeng sa li-OEM kapa batho ba chesehelang 'maraka oa morao-rao, ho khetha FL2G ho eketsa tšireletso ho litsamaiso tsa motlakase.
